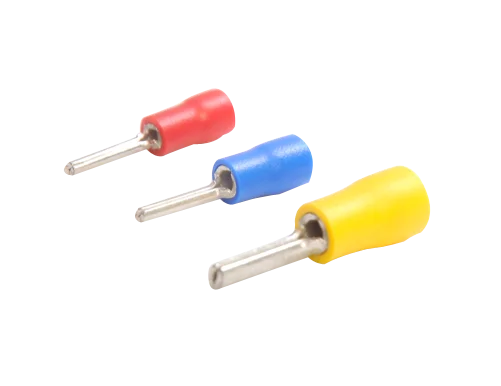

Double Grip With Insulating Sleeve (Round Pin Type)
Material: ETP-Copper with PVC Sleeve
Surface: Tin Plated

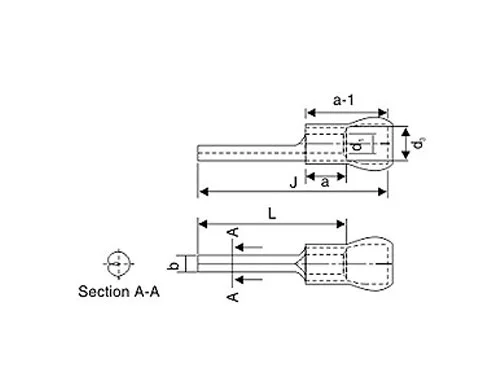

| Technique Data | ||||
|---|---|---|---|---|
| Conductor | CAT No. | J | L | S |
| 0.5 to 1.5 mm2 | 3D-3040 | 22 | 17 | 0.8 |
| 2.5 mm2 | 3D-3043 | 22 | 17 | 0.8 |
| 4 to 6 mm2 | 3D-3046 | 29 | 20 | 1 |
| - | 3D-3040 | 22 | 17 | 0.8 |
| 3D-3043 | 22 | 17 | 0.8 | |
| 3D-3046 | 29 | 20 | 1 | |
