DIN 46267 Part 2
For non tension connection
Material : Aluminium
Surface: Bright

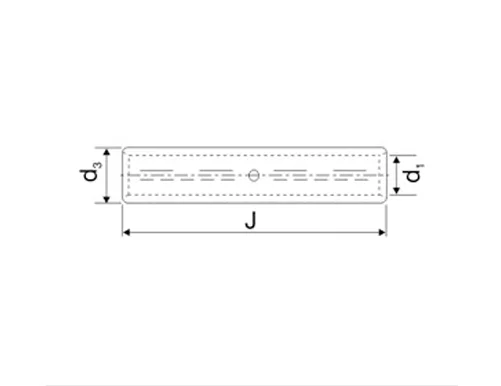

| Technique Data | |||||
|---|---|---|---|---|---|
| Conductor | CAT No. | d1 | d2 | J | PKG |
| 25 | 3D-2412 | 6.8 | 12.0 | 70 | 50 |
| 35 | 3D-2413 | 8.0 | 14.0 | 85 | 50 |
| 50 | 3D-2414 | 9.8 | 16.0 | 85 | 50 |
| 70 | 3D-2415 | 11.2 | 18.5 | 105 | 25 |
| 95 | 3D-2416 | 13.2 | 22.0 | 105 | 25 |
| 120 | 3D-2417 | 14.7 | 23.0 | 105 | 25 |
| 150 | 3D-2418 | 16.3 | 25.0 | 125 | 25 |
| 185 | 3D-2419 | 18.3 | 28.5 | 125 | 15 |
| 240 | 3D-2420 | 21.0 | 32.0 | 145 | 10 |
| 300 | 3D-2421 | 23.3 | 34.0 | 145 | 5 |
| 400 | 3D-2422 | 26.0 | 38.5 | 210 | 5 |
| 500 | 3D -2423 | 29.0 | 44.0 | 210 | 4 |
