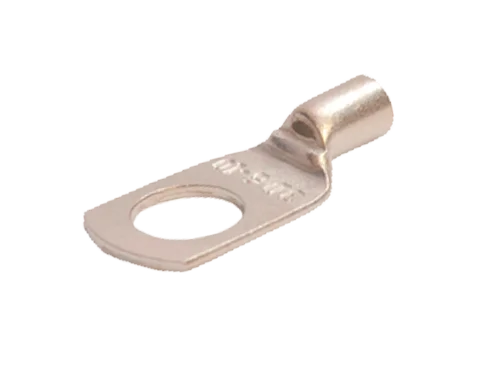

Extra wide palm type, with inspection hole for copper conductors.
Material: ETP-Copper
Surface: Tin Plated

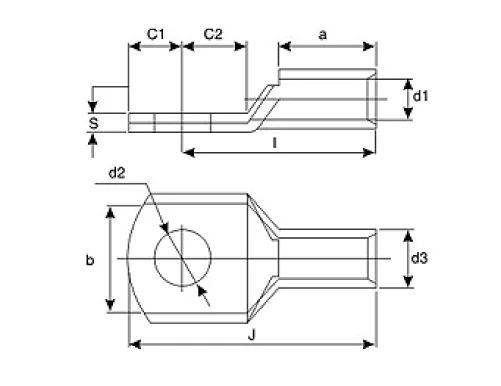

| Technique Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Bolt Ø | CAT No. | C1 | C2 | I | J | S | ||
| 6 | 10 | 3D-2638 | 9 | 11 | 23 | 32 | 2.4 | ||
| 10 | 10 | 3D-2648 | 9 | 10 | 23 | 32 | 2.4 | ||
| 16 | 10 | 3D-2658 | 10 | 10 | 26 | 36 | 2.4 | ||
| 12 | 3D-2659 | 12 | 12 | 28 | 40 | 3 | |||
