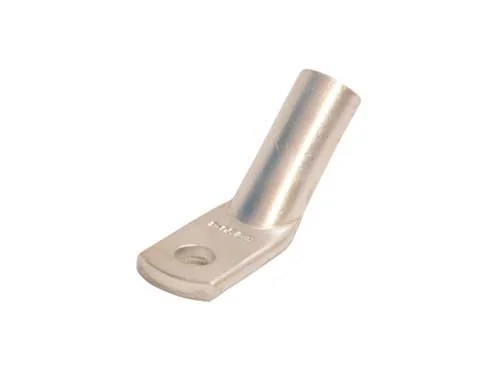

45° Angle tube

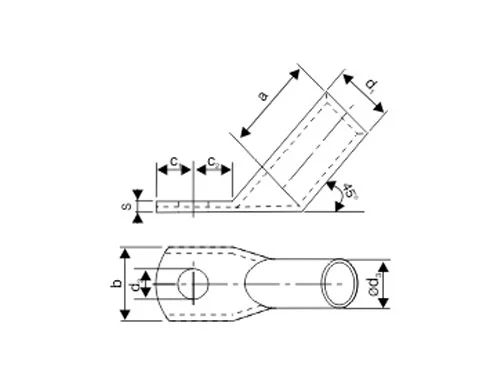

Dimensions as per DIN 46235
Material: Electrolytic copper
Surface: Electro Tinned
Bright finish without tin plating will be made as per Order
| Technique Data | |||||
|---|---|---|---|---|---|
| Conductor | Bolt Ø | CAT No. | C1 | C2 | PKG |
| 6 | M 5 | 3D-2958 y | 6.5 | 9 | 100 |
| m 6 | 3d-2959 y | 7.5 | 10 | 100 | |
| m 8 | 3d-2206 y | 10 | 13 | 100 | |
| 10 | M 5 | 3D-2960 y | 7 | 10 | 100 |
| m 6 | 3d-2961 y | 7.5 | 10 | 100 | |
| m 8 | 3d-2207 y | 10 | 13 | 100 | |
| 16 | M 6 | 3D-2962 y | 7.5 | 11 | 50 |
| m 8 | 3d-2963 y | 10 | 13 | 50 | |
| m 10 | 3d-2964 y | 12 | 15 | 50 | |
| m 12 | 3d-2325 y | 13 | 18 | 50 | |
| 25 | M 6 | 3D-2965 y | 7.5 | 11 | 50 |
| m 8 | 3d-2966 y | 10 | 13 | 50 | |
| m 10 | 3d-2967 y | 12 | 15 | 50 | |
| m 12 | 3d-2968 y | 13 | 18 | 50 | |
| 35 | M 6 | 3D-2326 y | 7 | 13 | 25 |
| M 8 | 3d-2969 y | 10 | 13 | 25 | |
| m 10 | 3d-2970 y | 12 | 15 | 25 | |
| M 12 | 3D-2971 y | 13 | 18 | 25 | |
| 50 | m 8 | 3d-2972 y | 10 | 16 | 25 |
| m 10 | 3d-2973 y | 12 | 16 | 25 | |
| m 12 | 3d-2974 y | 13 | 18 | 25 | |
| m 16 | 3d-2975 y | 16 | 22 | 15 | |
