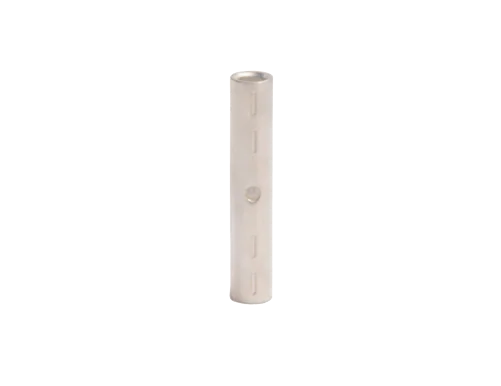

Compression Joints non tension connectors.
Material : Electrolytic copper
Finish: Tin Plated

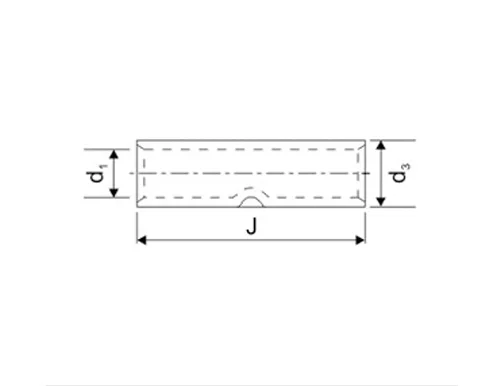

| Technique Data | ||||||
|---|---|---|---|---|---|---|
| Conductor | CAT No. | d1 | d3 | J | PKG | Code |
| 6 | 3D-2394 | 3.8 | 5.5 | 30 | 100 | 5 |
| 10 | 3D-2395 | 4.5 | 6 | 30 | 100 | 6 |
| 16 | 3D-2396 | 5.5 | 8.5 | 50 | 100 | 8 |
| 25 | 3D-2397 | 7 | 10 | 50 | 50 | 10 |
| 35 | 3D-2398 | 8.2 | 12.5 | 50 | 50 | 12 |
| 50 | 3D-2399 | 10 | 14.5 | 56 | 50 | 14 |
| 70 | 3D-2400 | 11.5 | 16.5 | 56 | 50 | 16 |
| 95 | 3D-2401 | 13.5 | 19 | 70 | 25 | 18 |
| 120 | 3D-2402 | 15.5 | 21 | 70 | 25 | 20 |
| 150 | 3D-2403 | 17 | 23.5 | 80 | 10 | 22 |
| 185 | 3D-2404 | 19.0 | 26 | 85 | 10 | 25 |
| 240 | 3D-2405 | 21.5 | 29.0 | 90 | 10 | 28 |
| 300 | 3D-2406 | 24.5 | 32 | 100 | 5 | 32 |
| 400 | 3D-2407 | 27.5 | 38.5 | 150 | 5 | 38 |
| 500 | 3D-2408 | 31 | 42 | 160 | 1 | 42 |
| 625 | 3D-2409 | 34.5 | 44 | 160 | 1 | 44 |
| 800 | 3D-2410 | 40 | 52 | 200 | 1 | 52 |
| 1000 | 3D-2411 | 44 | 58 | 200 | 1 | 58 |
