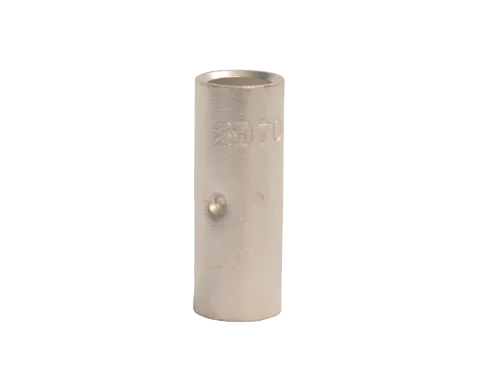

Standard Type
Material : Electrolytic copper
Surface: Electro Tin Plated

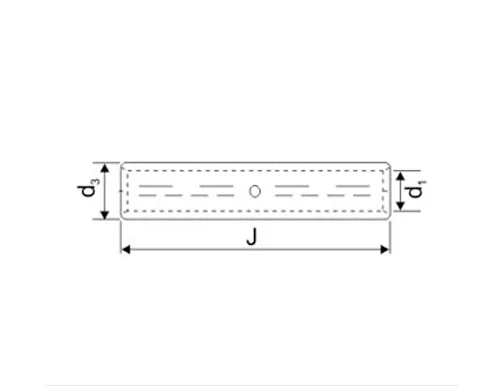

| Technique Data | |||||
|---|---|---|---|---|---|
| Conductor | CAT No. | d1 | d3 | J | PKG |
| 0.75 | 3D-2431 | 1.3 | 2.8 | 20 | 100 |
| 1.5 | 3D-2432 | 1.8 | 3.3 | 25 | 100 |
| 2.5 | 3D-2433 | 2.3 | 4.2 | 25 | 100 |
| 4 | 3D-2434 | 3 | 5 | 25 | 100 |
| 6 | 3D-2435 | 3.5 | 6.5 | 25 | 100 |
| 10 | 3D-2054 | 4.5 | 7 | 30 | 100 |
| 16 | 3D-2056 | 5.5 | 8.5 | 35 | 100 |
| 25 | 3D-2057 | 7 | 10 | 40 | 50 |
| 35 | 3D-2058 | 8.5 | 12 | 45 | 50 |
| 50 | 3D-2059 | 10 | 14 | 50 | 50 |
| 70 | 3D-2055 | 12 | 16.5 | 55 | 50 |
| 95 | 3D-2056 | 13.5 | 18 | 60 | 25 |
| 120 | 3D-2057 | 15 | 19.5 | 65 | 25 |
| 150 | 3D-2081 | 16.5 | 21 | 70 | 10 |
| 185 | 3D-2082 | 19 | 24 | 75 | 10 |
| 240 | 3D-2083 | 21 | 26 | 85 | 10 |
| 300 | 3D-2084 | 23.5 | 29.5 | 100 | 5 |
| 400 | 3D-2085 | 27 | 34 | 100 | 5 |
