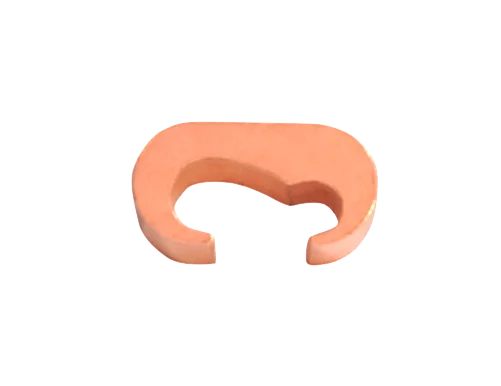

Copper C-Connectors are specifically designed for applications requiring corrosion resistant & high current jointing or tapping of buried copper earthing grids, or to earth rods. The ‘C’ connectors are made from 99.9% high conductivity copper. We can also provide serrations on the inside of the connector, which upon crimping shall break the oxide layer of the conductor.
Material :- ETP Copper
Finish :- Natural
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | |||
|---|---|---|---|

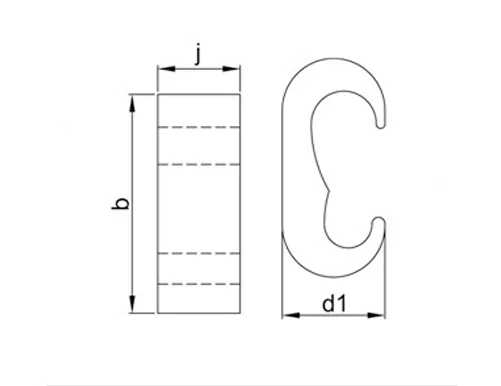

| 3D CAT NO | Dimensions in mm b | Dimensions in mm d1 | Dimensions in mm j |
| CCOE 3D 35/70 | 36 | 18.3 | 19 |
| CCOE 3D 70/120 | 50 | 23.2 | 19 |
| CCOE 3D 70/240 | 62 | 30.9 | 22 |
| CCOE 3D 120/240 | 68 | 33.9 | 28 |
