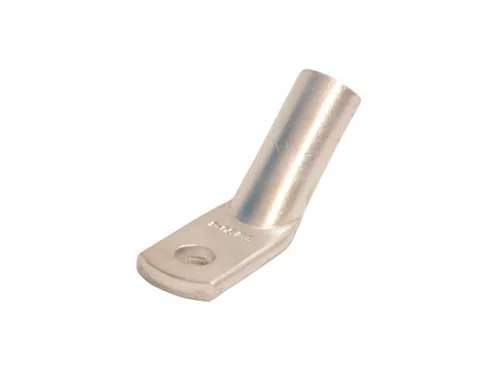

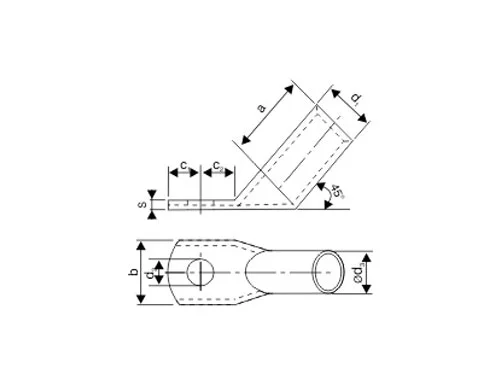

45° Angle tube Dimensions as per DIN 46235
Material: Electrolytic copper
Surface: Electro Tinned
Copper finish on request
| Technique Data | |||||
|---|---|---|---|---|---|
| Conductor | Bolt Ø | CAT No. | C1 | C2 | PKG |
| 70 | M 8 | 3D-2976 Y | 10 | 14 | 25 |
| m 10 | 3d-2977 Y | 12 | 16 | 25 | |
| M 12 | 3D-2978 Y | 13 | 18 | 25 | |
| M 16 | 3D-2979 Y | 16 | 22 | 20 | |
| 95 | M 8 | 3D-2330 y | 12 | 17 | 10 |
| m 10 | 3d-2980 y | 12 | 17 | 10 | |
| m 12 | 3d-2981 y | 13 | 18 | 10 | |
| m 16 | 3d-2982 y | 16 | 22 | 10 | |
| 120 | M 10 | 3D-2983 y | 15 | 17 | 15 |
| m 12 | 3d-2984 y | 16 | 18 | 15 | |
| m 16 | 3d-2985 y | 18 | 22 | 15 | |
| m 20 | 3d-2986 y | 21 | 24 | 15 | |
| 150 | M 10 | 3D-2987 y | 15 | 17 | 10 |
| m 12 | 3d-2988 y | 16 | 18 | 10 | |
| m 16 | 3d-2989 y | 19 | 22 | 10 | |
| m 20 | 3d-2990 y | 21 | 24 | 10 | |
| 185 | M 10 | 3D-2991 y | 15 | 22 | 10 |
| M 12 | 3d-2992 y | 16 | 22 | 10 | |
| m 16 | 3d-2993 y | 19 | 22 | 10 | |
| M 20 | 3D-2994 y | 21 | 24 | 10 | |
| 240 | M 12 | 3D-2995 y | 16 | 22 | 10 |
| m 16 | 3d-2996 y | 19 | 22 | 10 | |
| m 20 | 3d-2997 y | 21 | 24 | 10 | |
