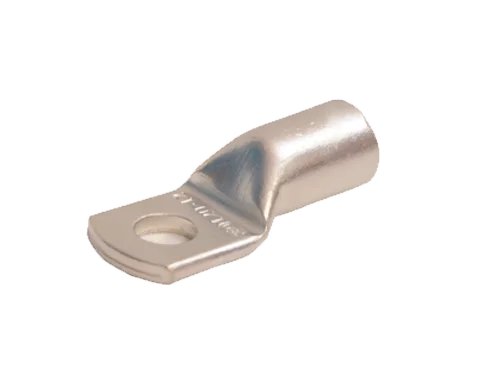

Tubular Lugs Without Inspection Hole

Inspection Hole Lugs

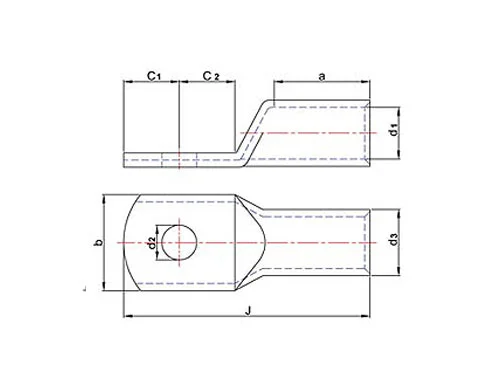

Inspection Hole Lugs Diagram

These lugs are designed to cater to the needs of the Middle East Market.

Material :- ETP Copper

Finish :- Tin Plated

Technique Data
Conductor Bolt Ø CAT No. C1 C2 J
2.5 M 5 3D-NI 2-2.5 5 34 22
4 M 5 3D-NI 4-5 5 6 22
6 M 5 3D-NI 6-5 5 6 23.5
M 6 3D-NI 6-6 5 6 23.5
M 8 3D-NI 6-8 6 9 28
M 10 3D-NI 6-10 9 11 33
M 12 3D-NI 6-12 10 13 36
10 M 5 3D-NI 10-5 6 7 26
M 6 3D-NI 10-6 6 7 26
M 8 3D-NI 10-8 6 9 28
M 10 3D-NI 10-10 9 10 34
M 12 3D-NI 10-12 13 13 40
16 M 5 3D-NI 16-5 7 7 31
M 6 3D-NI 16-6 7 7 31
M 8 3D-NI 16-8 7 9 32
M 10 3D-NI 16-10 10 10 38
M 12 3D-NI 16-12 12 12 42
M 16 3D-NI 16-16 16 16 52
25 M 5 3D-NI 25-5 7 7 32
M 6 3D-NI 25-6 7 7 32
M 8 3D-NI 25-8 7 7 32
M 10 3D-NI 25-10 10 11 38
M 12 3D-NI 25-12 12 13 42
M 14 3D-NI 25-14 13 15 45
35 M 6 3D-NI 35-6 9 9 37.5
M 8 3D-NI 35-8 9 9 42
M 10 3D-NI 35-10 10 10 48
M 12 3D-NI 35-12 12 13 53
M 14 3D-NI 35-14 12 13 53
50 M 6 3D-NI 50-6 10 11 44
M 8 3D-NI 50-8 10 11 44
M 10 3D-NI 50-10 10 11 49
M 12 3D-NI 50-12 12 13 53
M 14 3D-NI 50-14 12 14 54
70 M 6 3D-NI 70-6 11 11 48
M 8 3D-NI 70-8 11 11 48
M 10 3D-NI 70-10 12 13 51.5
M 12 3D-NI 70-12 12 13 55
M 14 3D-NI 70-14 16 16 61
95 M 8 3D-NI 95-8 12 12 55
M 10 3D-NI 95-10 12 12 55
M 12 3D-NI 95-12 13 13 59
M 14 3D-NI 95-14 16 16 67
M 16 3D-NI 95-16 16 16 67
M 20 3D-NI 95-20 16 16 68
120 M 8 3D-NI 120-8 14 14 65
M 10 3D-NI 120-10 14 14 65
M 12 3D-NI 120-12 14 14 65
M 14 3D-NI 120-14 16 16 68
M 16 3D-NI 120-16 16 16 68
M 20 3D-NI 120-20 16 16 68
150 M 8 3D-NI 150-8 16 16 69
M 10 3D-NI 150-10 16 16 69
M 12 3D-NI 150-12 16 16 72
M 14 3D-NI 150-14 16 16 72
M 16 3D-NI 150-16 16 16 72
M 20 3D-NI 150-20 16 16 72
185 M 10 3D-NI 185-10 17 17 82
M 12 3D-NI 185-12 17 17 82
M 14 3D-NI 185-14 17 17 82
M 16 3D-NI 185-16 17 17 82
M 20 3D-NI 185-20 20 21 89
240 M 10 3D-NI 240-10v 20 20 94
M 12 3D-NI 240-12 20 20 94
M 14 3D-NI 240-14 20 20 94
M 16 3D-NI 240-16 20 20 94
300 M 12 3D-NI 300-12 22 22 111
M 14 3D-NI 300-14 22 22 111
M 16 3D-NI 300-16 22 22 111
M 20 3D-NI 300-20 22 22 111
400 M 16 3D-NI 400-16 25 25 114
M 20 3D-NI 400-20 25 25 114
500 M 16 3D-NI 500-16 26 26 134
M 20 3D-NI 500-20 26 26 134
630 M 10 3D-NI 630-10 26 26 144
M 12 3D-NI 630-12 26 26 144
M 16 3D-NI 630-16 26 26 144
M 20 3D-NI 630-20 26 26 144
