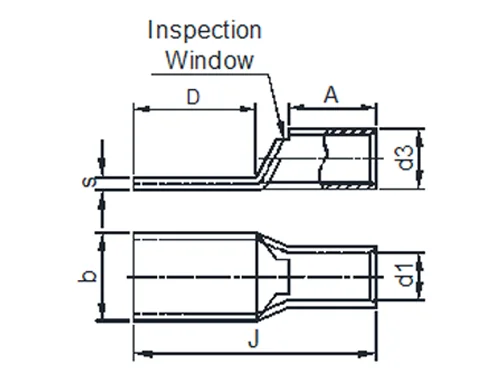

As per Customer requirement we can provide without Inspection Window, only 'W' will not be added in below Cat.No.
As per customer requirement we can provide tin finish. 'T' will be added with below Cat No. for tin finish.
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | |||||
|---|---|---|---|---|---|
| Conductor | CAT No. | Material | ID Ød1 | PalmWidth B | D |
| #8 AWG | 3D STSBW 8-00 | Cu | 4.5 | 15.2 | 21.3 |
| #6 AWG | 3D STSBW 6-00 | Cu | 5.5 | 15.7 | 21.3 |
| #4 AWG | 3D STSBW 4-00 | Cu | 7.1 | 15.7 | 21.3 |
| #2 AWG | 3D STSBW 2-00 | Cu | 7.8 | 19.0 | 27.1 |
| #1 AWG | 3D STSBW 1-00 | Cu | 9.1 | 19.0 | 27.1 |
| #1/0 AWG | 3D STSBW 1/0-00 | Cu | 9.9 | 20.3 | 27.1 |
| #2/0 AWG | 3D STSBW 2/0-00 | Cu | 11.4 | 21.5 | 27.6 |
| #3/0 AWG | 3D STSBW 3/0-00 | Cu | 12.9 | 24.3 | 27.6 |
| #4/0 AWG | 3D STSBW 4/0-00 | Cu | 14.4 | 26.9 | 27.6 |
| 250 MCM | 3D STSBW 250-00 | Cu | 16.0 | 29.7 | 27.6 |
| 300 MCM | 3D STSBW 300-00 | Cu | 16.5 | 30.2 | 44.9 |
| 350 MCM | 3D STSBW 350-00 | Cu | 17.7 | 32.5 | 44.9 |
| 400 MCM | 3D STSBW 400-00 | Cu | 19.3 | 35.3 | 44.9 |
| 500 MCM | 3D STSBW 500-00 | Cu | 21.3 | 39.1 | 44.9 |
| 600 MCM | 3D STSBW 600-00 | Cu | 23.3 | 43.1 | 44.9 |
