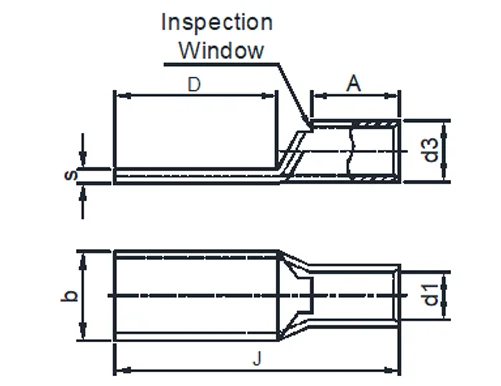

As per Customer requirement we can provide without Inspection Window, only 'W' will not be added in below Cat.No.
As per customer requirement we can provide tin finish. 'T' will be added with below Cat No. for tin finish.
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | ||||
|---|---|---|---|---|
| Conductor | CAT No. | Material | ID Ød1 | PalmWidth B |
| #1/0 AWG | 3D STLBW 1/0-00 | Cu | 9.9 | 20.3 |
| #2/0 AWG | 3D STLBW 2/0-00 | Cu | 11.4 | 21.5 |
| #3/0 AWG | 3D STLBW 3/0-00 | Cu | 12.9 | 24.3 |
| #4/0 AWG | 3D STLBW 4/0-00 | Cu | 14.4 | 26.9 |
| 250 MCM | 3D STLBW 250-00 | Cu | 16.0 | 29.7 |
| 300 MCM | 3D STLBW 300-00 | Cu | 16.5 | 30.2 |
| 350 MCM | 3D STLBW 350-00 | Cu | 17.7 | 32.5 |
| 400 MCM | 3D STLBW 400-00 | Cu | 19.3 | 35.3 |
| 500 MCM | 3D STLBW 500-00 | Cu | 21.3 | 39.1 |
| 600 MCM | 3D STLBW 600-00 | Cu | 23.3 | 43.1 |
| 750 MCM | 3D STLBW 750-00 | Cu | 26.1 | 48.2 |
