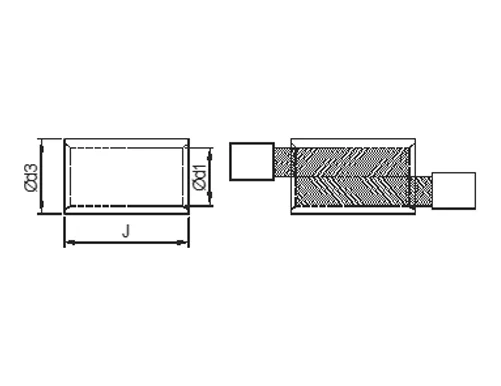

All dimensions are in mm, otherwise specified.
As per customer requirement we can provide tin finish. 'T' will be added with below Cat No. for tin finish.
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | ||||
|---|---|---|---|---|
| Conductor | CAT No. | Material | ID Ød1 | (Total Length) J |
| #10 AWG + #10 AWG | 3D PS 8 | Cu | 5.5 | 10.1 |
| #8 AWG + #8 AWG | 3D PS 6 | Cu | 7.1 | 11.1 |
| #8 AWG + #6 AWG | 3D PS 4 | Cu | 7.8 | 13.7 |
| #6 AWG + #4 AWG | 3D PS 2 | Cu | 9.9 | 16.3 |
| #4 AWG + #4 AWG | 3D PS 1 | Cu | 11.4 | 17.0 |
| #4 AWG + #2 AWG | 3D PS 1/0 | Cu | 12.9 | 18.5 |
| #2 AWG + #1 AWG | 3D PS 2/0 | Cu | 14.4 | 18.3 |
| #1 AWG + 1/0 AWG | 3D PS 3/0 | Cu | 16.0 | 19.1 |
| 1/0 AWG + 1/0 AWG | 3D PS 4/0 | Cu | 16.5 | 19.6 |
