All dimensions are in mm, otherwise specified.
As per Customer requirement we can provide with Window, only 'W' will be added with below Cat.No.

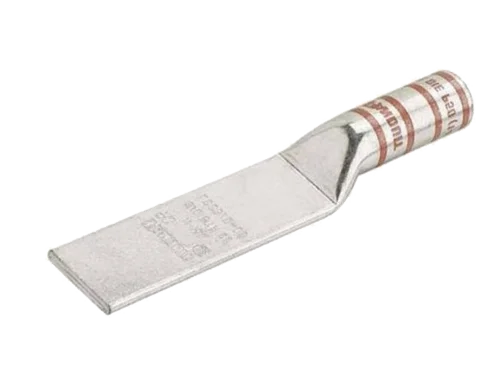

Please Refer Fig.1 for Straight Lug.
Please Refer Fig.2 for 45°,60°,70° angle Lug.
Please Refer Fig.3 for 90° angle Lug.
As per customer requirement we can provide tin finish. 'T' will be added with below Cat No. for tin finish.
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | |||||
|---|---|---|---|---|---|
| Conductor | CAT No. | Material | ID Ød1 | PalmWidth B | D |
| #8 AWG | 3D LLB 8-00 | Cu | 4.5 | 15.2 | 46.7 |
| #2 AWG | 3D LLB 2-00 | Cu | 7.8 | 19.0 | 76.4 |
| #1 AWG | 3D LLB 1-00 | Cu | 9.1 | 19.0 | 76.4 |
| #1/0 AWG | 3D LLB 1/0-00 | Cu | 9.9 | 20.3 | 76.4 |
| #2/0 AWG | 3D LLB 2/0-00 | Cu | 11.4 | 21.5 | 76.4 |
| #3/0 AWG | 3D LLB 3/0-00 | Cu | 12.9 | 24.3 | 76.4 |
| #4/0 AWG | 3D LLB 4/0-00 | Cu | 14.4 | 26.9 | 76.4 |
| 250 MCM | 3D LLB 250-00 | Cu | 16.0 | 29.7 | 76.4 |
| 300 MCM | 3D LLB 300-00 | Cu | 16.5 | 30.2 | 76.4 |
| 350 MCM | 3D LLB 350-00 | Cu | 17.7 | 32.5 | 76.4 |
| 400 MCM | 3D LLB 400-00 | Cu | 19.3 | 35.3 | 76.4 |
| 500 MCM | 3D LLB 500-00 | Cu | 21.3 | 39.1 | 76.4 |
| 600 MCM | 3D LLB 600-00 | Cu | 23.3 | 43.1 | 76.4 |
| 750 MCM | 3D LLB 750-00 | Cu | 26.1 | 48.0 | 76.4 |
