Copper C-Connectors are specifically designed for applications requiring corrosion resistant & high current jointing or tapping of buried copper earthing grids, or to earth rods. The ‘C’ connectors are made from 99.9% high conductivity copper. We can also provide serrations on the inside of the connector, which upon crimping shall break the oxide layer of the conductor.
Material :- ETP Copper
Finish :- Natural or Tin Plated
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | |||||
|---|---|---|---|---|---|

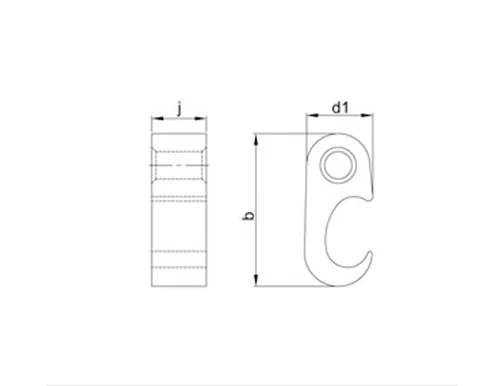

| Conductor | 3D CAT NO | Dimensions in mm b | Dimensions in mm d1 | Dimensions in mm j | Tap off (mm²) |
| 50 mm2 to 120 mm2 (13,14 or 15mm diameter earth rod) |
CCTO 3D 1.5 | 53 | 23 | 19 | 1.5 |
| CCTO 3D 2.5 | 53 | 23 | 19 | 2.5 | |
| CCTO 3D 4 | 53 | 23 | 19 | 4 | |
| CCTO 3D 6 | 53 | 23 | 19 | 6 | |
| CCTO 3D 10 | 53 | 23 | 19 | 10 | |
| CCTO 3D 16 | 53 | 23 | 19 | 16 | |
| CCTO 3D 25 | 53 | 23 | 19 | 25 | |
| CCTO 3D 35 | 53 | 23 | 19 | 35 | |
| CCTO 3D 50 | 53 | 23 | 19 | 50 | |
| CCTO 3D 70 | 53 | 23 | 19 | 70 | |
| CCTO 3D 95 | 53 | 23 | 19 | 95 | |
| CCTO 3D 120 | 53 | 23 | 19 | 120 | |
