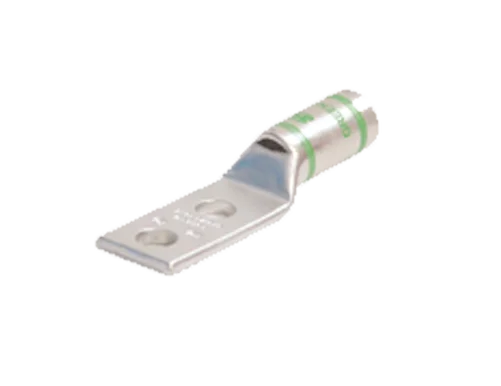

All dimensions are in mm, otherwise specified.
As per Customer requirement we can provide with Window,only 'W' will be added with below Cat.No.

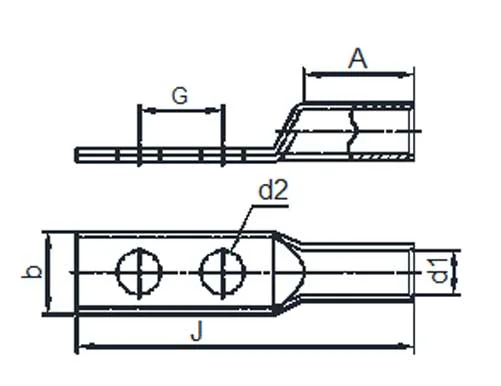

Please Refer Fig.1 for Straight Lug.

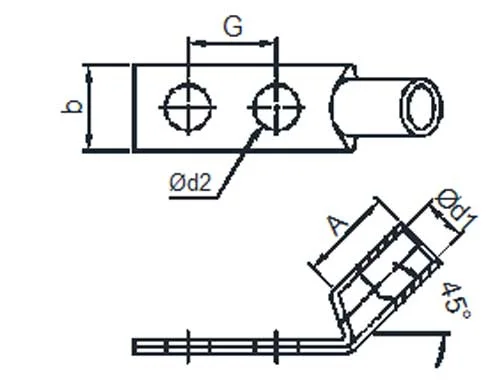

Please Refer Fig.2 for 45°,60°,70° angle Lug.

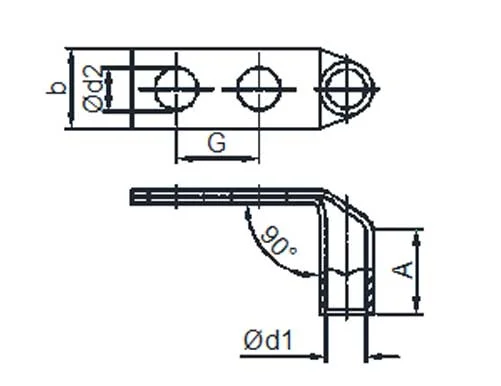

Please Refer Fig.3 for 90° angle Lug.
For angle lugs, the angle value will be added with below Cat No.
As per customer requirement we can provide tin finish.'T' will be added with below Cat No. for tin finish.
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | ||||||
|---|---|---|---|---|---|---|
| Conductor | CAT No. | Stud Size | Material | PalmWidth B | G | StudHole Ød2 |
| #8 AWG | 3D SD 8-10A | #10 | Cu | 10.4 | 15.8 | 5.0 |
| 3D SD 8-14A | 1/4 | Cu | 12.1 | 15.8 | 6.8 | |
| 3D SD 8-14B | 1/4 | Cu | 12.1 | 19.0 | 6.8 | |
| 3D SD 8-14D | 1/4 | Cu | 12.1 | 25.4 | 6.8 | |
| 3D SD 8-38D | 3/8 | Cu | 15.2 | 25.4 | 10.4 | |
| #6 AWG | 3D SD 6-10A | #10 | Cu | 11.4 | 15.8 | 5.0 |
| 3D SD 6-14A | 1/4 | Cu | 12.1 | 15.8 | 6.8 | |
| 3D SD 6-14B | 1/4 | Cu | 12.1 | 19.0 | 6.8 | |
| 3D SD 6-14D | 1/4 | Cu | 12.1 | 25.4 | 6.8 | |
| 3D SD 6-56D | 5/16 | Cu | 14.2 | 25.4 | 8.6 | |
| 3D SD 6-38D | 3/8 | Cu | 15.7 | 25.4 | 10.4 | |
| #4 AWG | 3D SD 4-10A | #10 | Cu | 14 | 15.8 | 5.0 |
| 3D SD 4-10B | #10 | Cu | 14 | 19.0 | 5.0 | |
| 3D SD 4-14A | 1/4 | Cu | 14 | 15.8 | 6.8 | |
| 3D SD 4-14B | 1/4 | Cu | 14 | 19.0 | 6.8 | |
| 3D SD 4-14D | 1/4 | Cu | 14 | 25.4 | 6.8 | |
| 3D SD 4-38D | 3/8 | Cu | 15.7 | 25.4 | 10.4 | |
| #2 AWG | 3D SD 2-14A | 1/4 | Cu | 15.2 | 15.8 | 6.8 |
| 3D SD 2-14B | 1/4 | Cu | 15.2 | 19.0 | 6.8 | |
| 3D SD 2-14D | 1/4 | Cu | 15.2 | 25.4 | 6.8 | |
| 3D SD 2-56B | 5/16 | Cu | 16.8 | 19.0 | 8.6 | |
| 3D SD 2-38D | 3/8 | Cu | 16.8 | 25.4 | 10.4 | |
| 3D SD 2-12 | 1/2 | Cu | 19.0 | 44.4 | 13.4 | |
| #1 AWG | 3D SD 1-14A | 1/4 | Cu | 17.8 | 15.8 | 6.8 |
| 3D SD 1-14B | 1/4 | Cu | 17.8 | 19.0 | 6.8 | |
| 3D SD 1-56C | 5/16 | Cu | 17.8 | 22.2 | 8.6 | |
| 3D SD 1-38D | 3/8 | Cu | 17.8 | 25.4 | 10.4 | |
| 3D SD 1-12 | 1/2 | Cu | 19.0 | 44.4 | 13.4 | |
| 1/0 AWG | 3D SD 1/0-14A | 1/4 | Cu | 19.3 | 15.8 | 6.8 |
| 3D SD 1/0-14B | 1/4 | Cu | 19.3 | 19.0 | 6.8 | |
| 3D SD 1/0-56C | 5/16 | Cu | 19.3 | 22.2 | 8.6 | |
| 3D SD 1/0-38D | 3/8 | Cu | 19.3 | 25.4 | 10.4 | |
| 3D SD 1/0-12 | 1/2 | Cu | 20.3 | 44.4 | 13.4 | |
| 2/0 AWG | 3D SD 2/0-14A | 1/4 | Cu | 21.6 | 15.8 | 6.8 |
| 3D SD 2/0-14B | 1/4 | Cu | 21.6 | 19.0 | 6.8 | |
| 3D SD 2/0-56C | 5/16 | Cu | 21.6 | 22.2 | 8.6 | |
| 3D SD 2/0-38D | 3/8 | Cu | 21.6 | 25.4 | 10.4 | |
| 3D SD 2/0-12 | 1/2 | Cu | 21.6 | 44.4 | 13.4 | |
| 3/0 AWG | 3D SD 3/0-14B | 1/4 | Cu | 24.4 | 19.0 | 6.8 |
| 3D SD 3/0-56D | 5/16 | Cu | 24.4 | 25.4 | 8.6 | |
| 3D SD 3/0-38D | 3/8 | Cu | 24.4 | 25.4 | 10.4 | |
| 3D SD 3/0-12 | 1/2 | Cu | 24.4 | 44.4 | 13.4 | |
| 4/0 AWG | 3D SD 4/0-14B | 1/4 | Cu | 26.9 | 19.0 | 6.8 |
| 3D SD 4/0-56D | 5/16 | Cu | 26.9 | 25.4 | 8.6 | |
| 3D SD 4/0-38D | 3/8 | Cu | 26.9 | 25.4 | 10.4 | |
| 3D SD 4/0-38 | 3/8 | Cu | 26.9 | 44.4 | 10.4 | |
| 3D SD 4/0-12 | 1/2 | Cu | 26.9 | 44.4 | 13.4 | |
| 250 MCM | 3D SD 250-56D | 5/16 | Cu | 29.7 | 25.4 | 8.6 |
| 3D SD 250-38D | 3/8 | Cu | 29.7 | 25.4 | 10.4 | |
| 3D SD 250-12 | 1/2 | Cu | 29.7 | 44.4 | 13.4 | |
| 300 MCM | 3D SD 300-38D | 3/8 | Cu | 30.2 | 25.4 | 10.4 |
| 3D SD 300-12 | 1/2 | Cu | 30.2 | 44.4 | 13.4 | |
| 350 MCM | 3D SD 350-14B | 1/4 | Cu | 32.5 | 19.0 | 6.8 |
| 3D SD 350-38D | 3/8 | Cu | 32.5 | 25.4 | 10.4 | |
| 3D SD 350-12E | 1/2 | Cu | 32.5 | 31.7 | 13.4 | |
| 3D SD 350-12 | 1/2 | Cu | 32.5 | 44.4 | 13.4 | |
| 400 MCM | 3D SD 400-38D | 3/8 | Cu | 35.3 | 25.4 | 10.4 |
| 3D SD 400-12 | 1/2 | Cu | 35.3 | 44.4 | 13.4 | |
| 500 MCM | 3D SD 500-14B | 1/4 | Cu | 39.1 | 19.0 | 6.8 |
| 3D SD 500-38D | 3/8 | Cu | 39.1 | 25.4 | 10.4 | |
| 3D SD 500-12E | 1/2 | Cu | 39.1 | 31.7 | 13.4 | |
| 3D SD 500-12 | 1/2 | Cu | 39.1 | 44.4 | 13.4 | |
| 600 MCM | 3D SD 600-38D | 3/8 | Cu | 43.1 | 25.4 | 10.4 |
| 3D SD 600-12 | 1/2 | Cu | 43.1 | 44.4 | 13.4 | |
| 750 MCM | 3D SD 750-12 | 1/2 | Cu | 48.2 | 44.4 | 13.4 |
