All dimensions are in mm, otherwise specified.
As per customer requirement we can provide tin finish. 'T' will be added with below Cat No. for tin finish.
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | ||||
|---|---|---|---|---|

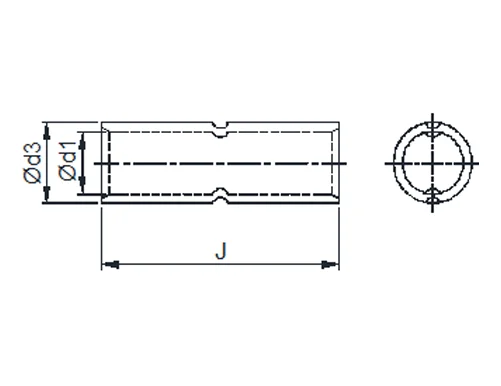

| Conductor | CAT No. | Material | (ID) Ød1 | (Total Length) J |
| #8 AWG | 3D SBS 8 | Cu | 4.5 | 25.4 |
| #6 AWG | 3D SBS 6 | Cu | 5.5 | 25.4 |
| #4 AWG | 3D SBS 4 | Cu | 7.1 | 25.4 |
| #2 AWG | 3D SBS 2 | Cu | 7.8 | 31.7 |
| #1 AWG | 3D SBS 1 | Cu | 9.1 | 36.5 |
| 1/0 AWG | 3D SBS 1/0 | Cu | 9.9 | 36.5 |
| 2/0 AWG | 3D SBS 2/0 | Cu | 11.4 | 39.6 |
| 3/0 AWG | 3D SBS 3/0 | Cu | 12.9 | 42.9 |
| 4/0 AWG | 3D SBS 4/0 | Cu | 14.4 | 45.9 |
| 250 kcmil | 3D SBS 250 | Cu | 16.0 | 55.6 |
| 300 kcmil | 3D SBS 300 | Cu | 16.5 | 57.1 |
| 350 kcmil | 3D SBS 350 | Cu | 17.7 | 60.3 |
| 400 kcmil | 3D SBS 400 | Cu | 19.3 | 63.5 |
| 500 kcmil | 3D SBS 500 | Cu | 21.3 | 73.0 |
| 600 kcmil | 3D SBS 600 | Cu | 23.3 | 73.0 |
| 750 kcmil | 3D SBS 750 | Cu | 26.1 | 85.7 |
