All dimensions are in mm, otherwise specified.
As per Customer requirement we can provide without Inspection Window, only 'W' will not be added in below Cat.No.

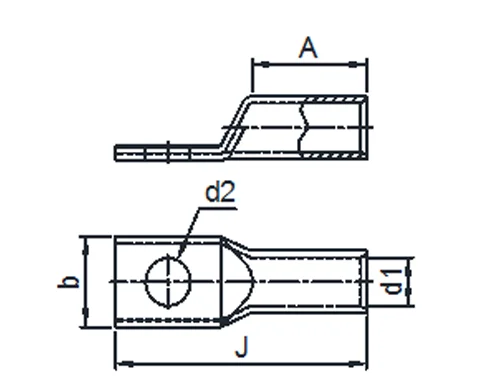

Please Refer Fig.1 for Straight Lug.

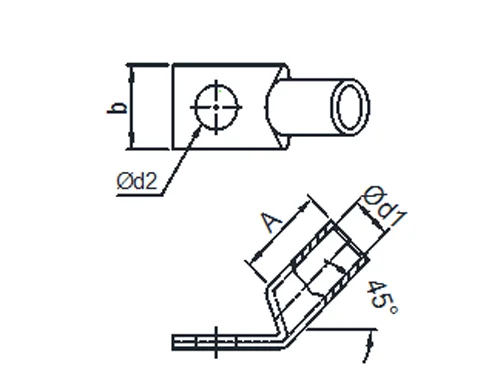

Please Refer Fig.2 for 45°,60°,70° angle Lug.

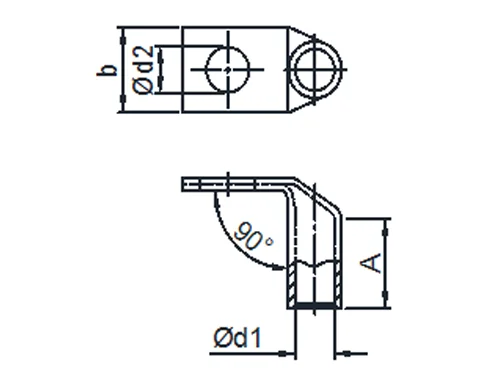

Please Refer Fig.3 for 90° angle Lug.
For angle lugs, the angle value will be added with below Cat No.
As per customer requirement we can provide tin finish. 'T' will be added with below Cat No. for tin finish.
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | ||||||
|---|---|---|---|---|---|---|
| Conductor | CAT No. | Stud Size | Material | ID Ød1 | PalmWidth B | StudHole Ød2 |
| #8 AWG | 3D SSW 8-10 | #10 | Cu | 4.6 | 10.4 | 5.0 |
| 3D SSW 8-14 | 1/4 | Cu | 4.6 | 12.1 | 6.8 | |
| 3D SSW 8-56 | 5/16 | Cu | 4.6 | 14.2 | 8.6 | |
| 3D SSW 8-38 | 3/8 | Cu | 4.6 | 15.2 | 10.4 | |
| #6 AWG | 3D SSW 6-10 | #10 | Cu | 5.6 | 11.4 | 5.0 |
| 3D SSW 6-14 | 1/4 | Cu | 5.6 | 12.1 | 6.8 | |
| 3D SSW 6-56 | 5/16 | Cu | 5.6 | 14.2 | 8.6 | |
| 3D SSW 6-38 | 3/8 | Cu | 5.6 | 15.7 | 10.4 | |
| #4 AWG | 3D SSW 4-10 | #10 | Cu | 7.1 | 14 | 5.0 |
| 3D SSW 4-14 | 1/4 | Cu | 7.1 | 14 | 6.8 | |
| 3D SSW 4-56 | 5/16 | Cu | 7.1 | 14 | 8.6 | |
| 3D SSW 4-38 | 3/8 | Cu | 7.1 | 15.7 | 10.4 | |
| #2 AWG | 3D SSW 2-14 | 1/4 | Cu | 7.9 | 15.2 | 6.8 |
| 3D SSW 2-56 | 5/16 | Cu | 7.9 | 16.8 | 8.6 | |
| 3D SSW 2-38 | 3/8 | Cu | 7.9 | 16.8 | 10.4 | |
| 3D SSW 2-12 | 1/2 | Cu | 7.9 | 19.0 | 13.4 | |
| #1 AWG | 3D SSW 1-14 | 1/4 | Cu | 9.1 | 17.8 | 6.8 |
| 3D SSW 1-56 | 5/16 | Cu | 9.1 | 17.8 | 8.6 | |
| 3D SSW 1-38 | 3/8 | Cu | 9.1 | 17.8 | 10.4 | |
| 3D SSW 1-12 | 1/2 | Cu | 9.1 | 19.0 | 13.4 | |
| 1/0 AWG | 3D SSW 1/0-14 | 1/4 | Cu | 9.9 | 19.3 | 6.8 |
| 3D SSW 1/0-56 | 5/16 | Cu | 9.9 | 19.3 | 8.6 | |
| 3D SSW 1/0-38 | 3/8 | Cu | 9.9 | 19.3 | 10.4 | |
| 3D SSW 1/0-12 | 1/2 | Cu | 9.9 | 20.3 | 13.4 | |
| 2/0 AWG | 3D SSW 2/0-14 | 1/4 | Cu | 11.4 | 21.6 | 6.8 |
| 3D SSW 2/0-56 | 5/16 | Cu | 11.4 | 21.6 | 8.6 | |
| 3D SSW 2/0-38 | 3/8 | Cu | 11.4 | 21.6 | 10.4 | |
| 3D SSW 2/0-12 | 1/2 | Cu | 11.4 | 21.6 | 13.4 | |
| 3/0 AWG | 3D SSW 3/0-14 | 1/4 | Cu | 13 | 24.4 | 6.8 |
| 3D SSW 3/0-56 | 5/16 | Cu | 13 | 24.4 | 8.6 | |
| 3D SSW 3/0-38 | 3/8 | Cu | 13 | 24.4 | 10.4 | |
| 3D SSW 3/0-12 | 1/2 | Cu | 13 | 24.4 | 13.4 | |
| 4/0 AWG | 3D SSW 4/0-14 | 1/4 | Cu | 14.5 | 26.9 | 6.8 |
| 3D SSW 4/0-56 | 5/16 | Cu | 14.5 | 26.9 | 8.6 | |
| 3D SSW 4/0-38 | 3/8 | Cu | 14.5 | 26.9 | 10.4 | |
| 3D SSW 4/0-12 | 1/2 | Cu | 14.5 | 26.9 | 13.4 | |
| 250 MCM | 3D SSW 250-14 | 1/4 | Cu | 16 | 29.7 | 6.8 |
| 3D SSW 250-56 | 5/16 | Cu | 16 | 29.7 | 8.6 | |
| 3D SSW 250-38 | 3/8 | Cu | 16 | 29.7 | 10.4 | |
| 3D SSW 250-12 | 1/2 | Cu | 16 | 29.7 | 13.4 | |
| 300 MCM | 3D SSW 300-56 | 5/16 | Cu | 16.5 | 30.2 | 8.6 |
| 3D SSW 300-38 | 3/8 | Cu | 16.5 | 30.2 | 10.4 | |
| 3D SSW 300-12 | 1/2 | Cu | 16.5 | 30.2 | 13.4 | |
| 3D SSW 300-58 | 5/8 | Cu | 16.5 | 30.2 | 16.7 | |
| 3D SSW 300-78 | 7/8 | Cu | 16.5 | 30.2 | 23.1 | |
| 350 MCM | 3D SSW 350-38 | 3/8 | Cu | 17.8 | 32.5 | 10.4 |
| 3D SSW 350-12 | 1/2 | Cu | 17.8 | 32.5 | 13.4 | |
| 3D SSW 350-58 | 5/8 | Cu | 17.8 | 32.5 | 16.7 | |
| 3D SSW 350-78 | 7/8 | Cu | 17.8 | 32.5 | 23.1 | |
| 400 MCM | 3D SSW 400-38 | 3/8 | Cu | 19.3 | 35.3 | 10.4 |
| 3D SSW 400-12 | 1/2 | Cu | 19.3 | 35.3 | 13.4 | |
| 3D SSW 400-58 | 5/8 | Cu | 19.3 | 35.3 | 16.7 | |
| 3D SSW 400-78 | 7/8 | Cu | 19.3 | 35.3 | 23.1 | |
| 500 MCM | 3D SSW 500-38 | 3/8 | Cu | 21.3 | 39.1 | 10.4 |
| 3D SSW 500-12 | 1/2 | Cu | 21.3 | 39.1 | 13.4 | |
| 3D SSW 500-58 | 5/8 | Cu | 21.3 | 39.1 | 16.7 | |
| 3D SSW 500-34 | 3/4 | Cu | 21.3 | 39.1 | 19.8 | |
| 3D SSW 500-78 | 7/8 | Cu | 21.3 | 39.1 | 23.1 | |
| 600 MCM | 3D SSW 600-12 | 1/2 | Cu | 23.4 | 43.2 | 13.4 |
| 3D SSW 600-58 | 5/8 | Cu | 23.4 | 43.2 | 16.7 | |
| 3D SSW 600-78 | 7/8 | Cu | 23.4 | 43.2 | 23.1 | |
| 750 MCM | 3D SSW 750-58 | 5/8 | Cu | 26.2 | 48.3 | 16.6 |
| 3D SSW 750-78 | 7/8 | Cu | 26.2 | 48.3 | 22.9 | |
