As per Customer requirement we can provide without Inspection Window, only 'W' will not be added in below Cat.No.
As per customer requirement we can provide tin finish. 'T' will be added with below Cat No. for tin finish.

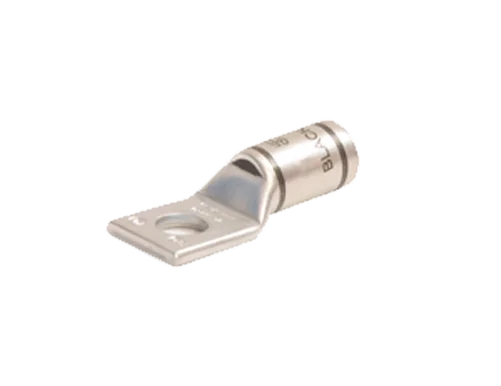

| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | ||||||
|---|---|---|---|---|---|---|

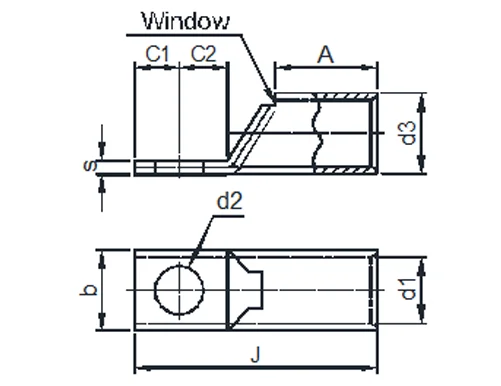

| Conductor | CAT No. | Stud Size | Material | ID Ød1 | PalmWidth B | StudHole Ød2 |
| #4 AWG | 3D STSWNA 4-14-L | 1/4 | Cu | 7.1 | 9.6 | 6.8 |
| #2 AWG | 3D STSWNA 2-14-Q | 1/4 | Cu | 7.8 | 10.6 | 6.8 |
| #1 AWG | 3D STSWNA 1-14-E | 1/4 | Cu | 9.1 | 11.9 | 6.8 |
| 1/0 AWG | 3D STSWNA 1/0-14-X | 1/4 | Cu | 9.9 | 13.2 | 6.8 |
| 3D STSWNA 1/0-56-X | 5/16 | Cu | 9.9 | 13.2 | 8.6 | |
| 2/0 AWG | 3D STSWNA 2/0-14-X | 1/4 | Cu | 11.4 | 14.7 | 6.8 |
| 3D STSWNA 2/0-56-X | 5/16 | Cu | 11.4 | 14.7 | 8.6 | |
| 3/0 AWG | 3D STSWNA 3/0-14-X | 1/4 | Cu | 13 | 16.3 | 6.8 |
| 3D STSWNA 3/0-38-X | 3/8 | Cu | 13 | 16.3 | 10.4 | |
| 4/0 AWG | 3D STSWNA 4/0-14-X | 1/4 | Cu | 14.5 | 18 | 6.8 |
| 3D STSWNA 4/0-38-X | 3/8 | Cu | 14.5 | 18 | 10.4 | |
| 250 MCM | 3D STSWNA 250-14-X | 1/4 | Cu | 16 | 19.6 | 6.8 |
| 3D STSWNA 250-38-X | 3/8 | Cu | 16 | 19.6 | 10.4 | |
| 300 MCM | 3D STSWNA 300-14-X | 1/4 | Cu | 16.5 | 20.6 | 6.8 |
| 3D STSWNA 300-38-X | 3/8 | Cu | 16.5 | 20.6 | 10.4 | |
| 350 MCM | 3D STSWNA 350-38-X | 3/8 | Cu | 17.8 | 22.4 | 10.4 |
| 3D STSWNA 350-12-X | 1/2 | Cu | 17.8 | 22.4 | 13.4 | |
| 500 MCM | 3D STSWNA 500-38-6 | 3/8 | Cu | 21.3 | 26.9 | 10.4 |
| 3D STSWNA 500-12-6 | 1/2 | Cu | 21.3 | 26.9 | 13.4 | |
| 600 MCM | 3D STSWNA 600-38-6 | 3/8 | Cu | 23.4 | 30.2 | 10.4 |
| 750 MCM | 3D STSWNA 750-38-6 | 3/8 | Cu | 26.2 | 33 | 10.4 |
| 3D STSWNA 750-58-6 | 5/8 | Cu | 26.2 | 33 | 16.6 | |
